LED Rolling Screen

LED Rolling Screen

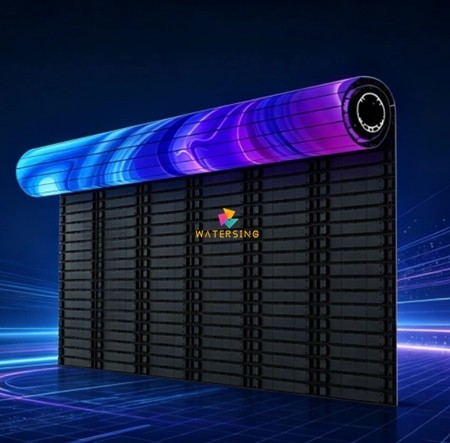

The LED roll-up screen is a flexible LED display screen that can be rolled up, retracted, and quickly deployed. It adopts a flexible substrate and modular design. The screen can be unfolded like a scroll for use, and can be rolled up and stored when not in use. It combines the advantages of flexible screens, irregular-shaped screens, and portable display devices.

Core Technology & Design Innovations

1.Flexible Modular Panels

Ultra-Thin Structure: Panels as thin as 0.8–2.5mm with bending radius ≤150mm, allowing seamless rolling without pixel damage.

Material: PET or micro-PCB substrates with IP65-rated silicone encapsulation (dust/water-resistant for indoor/outdoor use).

Pixel Pitch: 1.5mm–6mm (fine pitch for close-range stages; larger pitches for large venues).

2.Integrated Roller Mechanism

Silent Motorized System: Brushless DC motors with <35 dB noise (suitable for theater/dialogue scenes).

Programmable Speed: 0.1–1.2 m/s (adjustable via DMX/Art-Net for sync with show cues).

Fail-Safe Braking: Electromagnetic locks prevent uncontrolled descent during power loss.

3.Dynamic Deployment Modes

Vertical Roll: Drops from ceiling or rises from stage floor (max. height: 8–15m).

Horizontal Roll: Unfolds as a curved backdrop or side scrim (e.g., 180° panoramic displays).

Partial Reveal: Sections roll independently for split-screen effects (e.g., left/right scene transitions).

WaterSing supply LED roller screen in wholesale price

With various prices options

Customized dimension and specification as per your project needs

INQUIRE US FOR DETAILS
