Interactive LED Floor Screen

LED Interactive Floor Tile screen/Interactive LED Floor Screen

The interactive LED floor screen is an upgraded version of the conventional LED floor tiles screen, which incorporates an detecting system. It can accurately detect the position， movements and stepping points of people， and synchronized the changes in the display content to achieve the effect of "the screen follows the person wherever they go".

Composition:LED display box, the sensing system, the control system, and the interactive content software.

Features:

1.Foot-activated display: Just like ordinary floor tiles, the surface is made of tempered glass or high-strength PC coverings, featuring anti-slip, wear-resistant, and anti-glare properties.

2.Real-time sensing: Through built-in sensing chips, radar, infrared or pressure sensors, it can detect human positions.

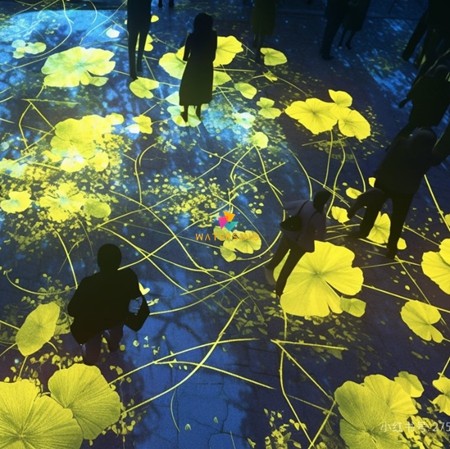

3.Image changes with people: When being stepped on, walked past, or stayed, the ground can present effects such as water waves, blooming flowers, cracking, light bands, and footprints trails.

4.Support for multi-person interaction: It can recognize multiple people stepping at the same time, suitable for scenarios such as stages, exhibition halls, bar dance floors, children's play areas, etc.

5.Modular maintenance: The box can be quickly disassembled and assembled, and a single box failure will not affect the operation of the entire screen.

Application scenarios:

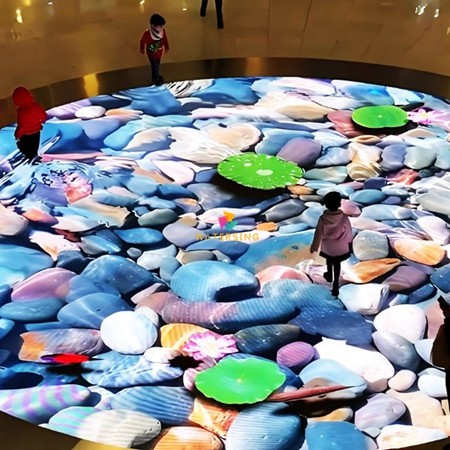

Science and technology museums, museums, digital exhibition halls

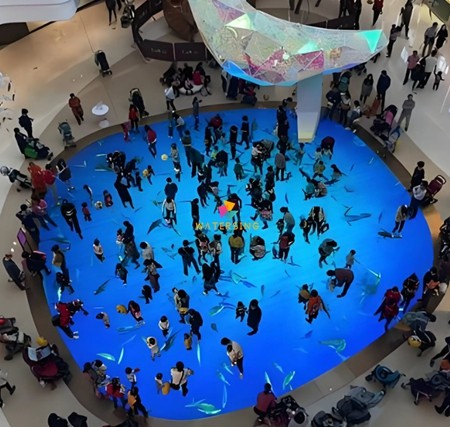

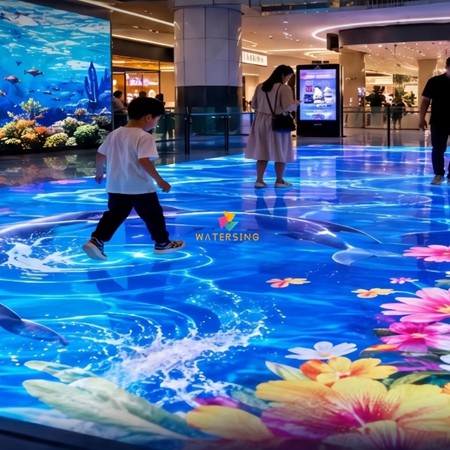

Shopping malls' atriums, brand events

Bar dance floors, KTVs

Stage performances, press conferences, weddings

Cultural tourism scenic spots, glass walkways, immersive spaces

Parameters:

Pixel pitch: P2.976、P3.91、P4.81、P5.2、P6.25、P7.81、P8.93

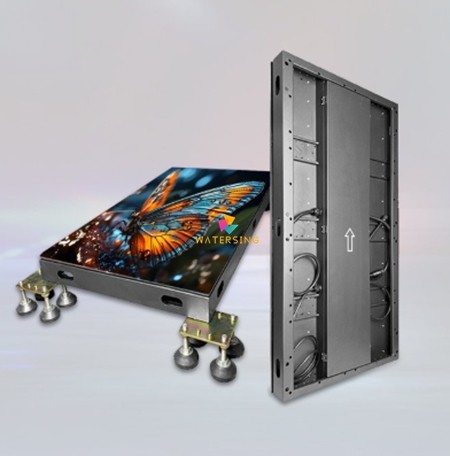

Box size: standard 500×500mm, 500×1000mm,or customized

Module size: 250×250mm (common size)

Load-bearing capacity Usually ranging from 1.5 tons per square meter to over 2 tons per square meter

Brightness: Approximately 2000 cd/m² indoors, and 4500 - 5000 cd/m² outdoors.

Protection level: /IP65

Refresh rate: 1920Hz, 3840Hz, 7680Hz

Induction method: Built-in induction chip, radar induction, infrared induction, pressure induction

Inductive response time: approximately 0.05 seconds to 0.5 seconds

Interaction points Support multi-touch/multi-sensing Allows multiple people to step on simultaneously for interaction

Mask material: Tempered glass, PC mask

Box material: Cast aluminum / Aluminum alloy

WaterSing supply interactive LED floor screen in wholesale price

With various prices options

Customized dimension and specification as per your project needs
