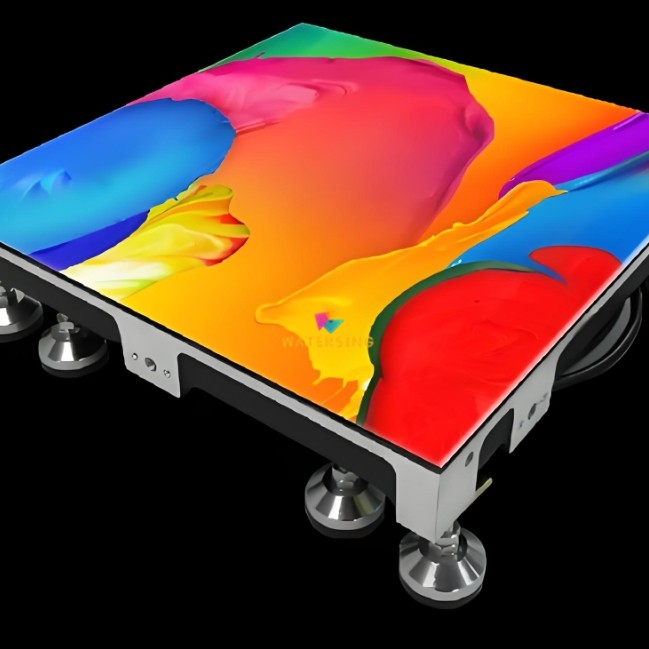

LED Floor Screen

LED Floor Screen/LED Screen Tile Ordinary type

LED floor screens are digital ground display devices. They are made of robust materials and with unique structural designs, enabling them to withstand foot stepping and other physical pressures while presenting clear and rich display effects.

Composition: die-cast aluminum box, LED modules, face cover, support base, power supply and control card.

Features:

Foot-activated: The surface is made of tempered glass or high-strength PC face cover, featuring anti-slip, wear-resistant and anti-glare treatment.

High load-bearing capacity: Generally, it can withstand 1.5 to 2 tons or more per square meter. Some reinforced products can have even higher capacity.

High protection level: Commonly IP65 protection, capable of adapting to complex indoor and outdoor environments.

Modular installation: Supports rapid assembly, single-piece disassembly and front-back maintenance, suitable for fixed installation and rental use.

Stable picture display: Displays pre-set videos, pictures or animations in a loop, without human screen interaction sensing.

Application:

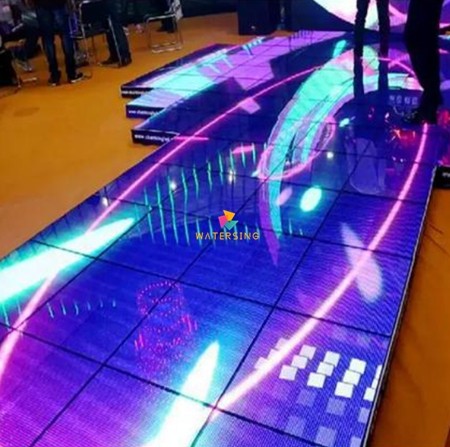

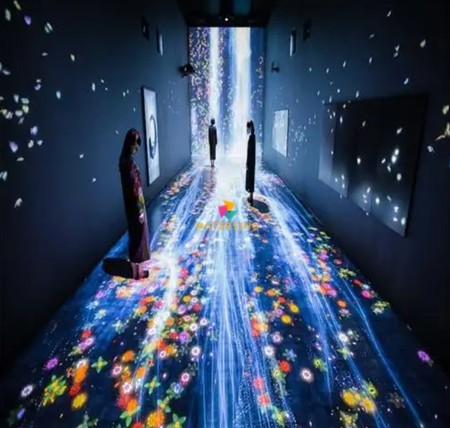

stages, dance floors, bars and other performance venues, cultural tourism industries, museums, science and technology museums and entertainment venues.

Parameters:

Pixel pitch: P2.976, P3.91, P4.81, P5.2, P6.25, P7.81, P8.93, etc.

Box size: standard 500×500mm, 500×1000mm,or customized

Module size: 250×250mm (Tcommon size)

Load-bearing capacity Usually ranging from 1.5 tons per square meter to over 2 tons per square meter

Protection level: IP30/IP33/IP65

Brightness: Approximately 800 - 2500 cd/m² indoors, and over 4500 cd/m² outdoors.

Refresh rate: 1920Hz, 3840Hz, 7680Hz

Mask material: Tempered glass, PC mask

Box material: Cast aluminum / Aluminum alloy

WaterSing supply LED floor screen in wholesale price

With various prices options

Customized dimension and specification as per your project needs

INQUIRE US FOR DETAILS
